F150 Rear 4 Link Kit Suspension System (2015-2024)

Regular price $2,299.99 Save $-2,299.99
/

SKU: 4-LINK-KIT-F150-15-24

Select Extras

Only 0 items in stock!
View on Suspension Engineering site
Shipping calculated at checkout.

(In Stock)

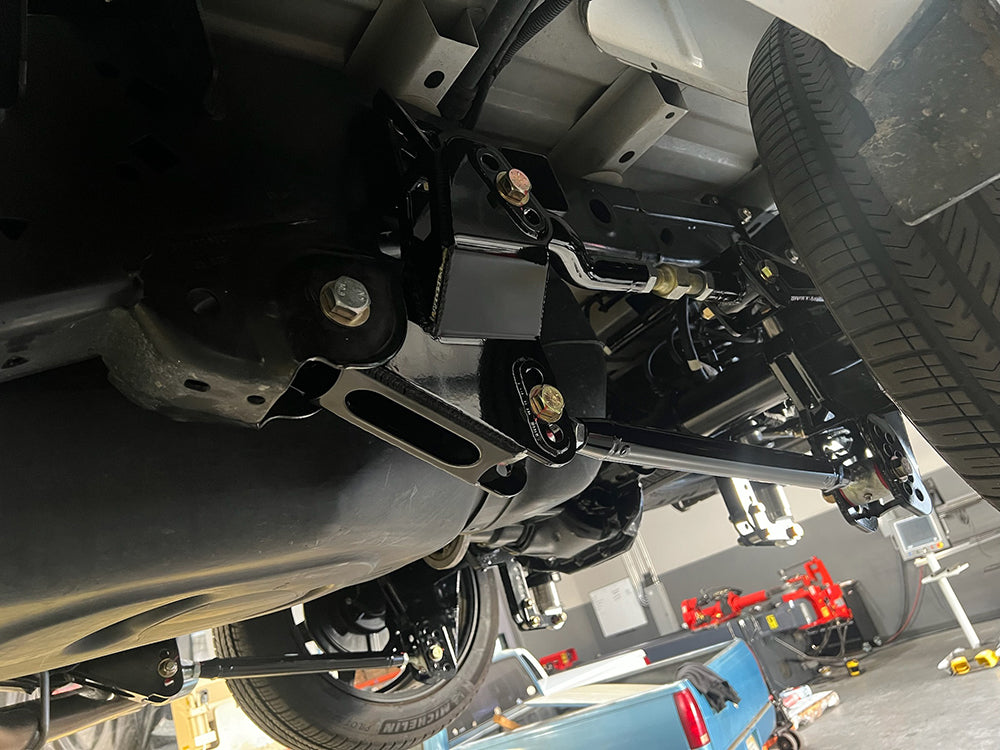

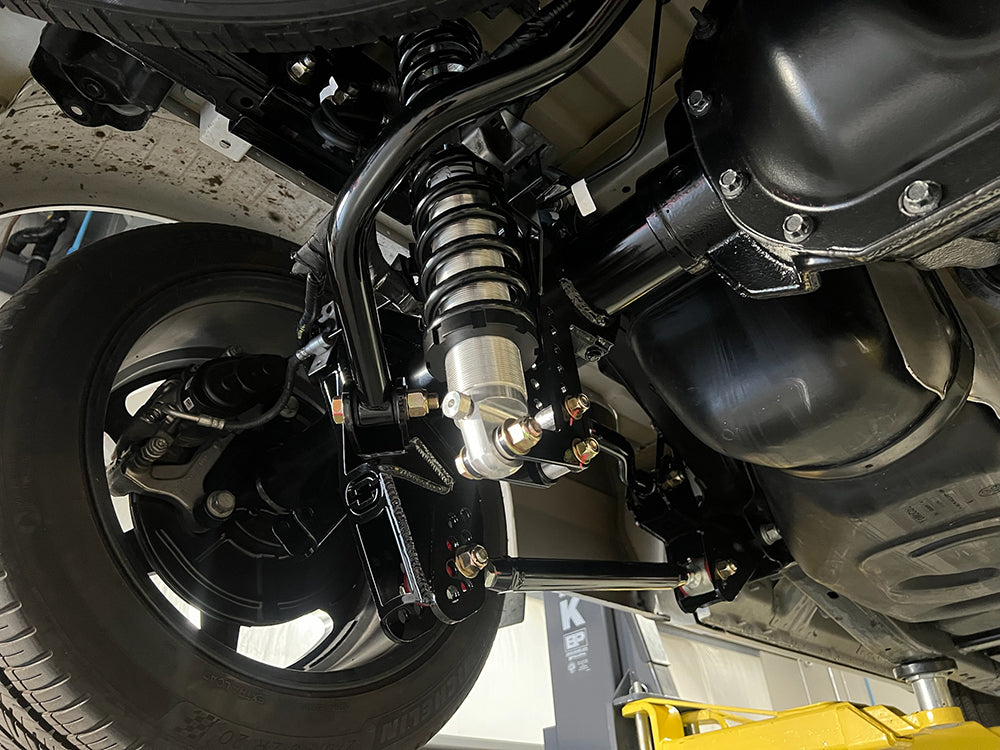

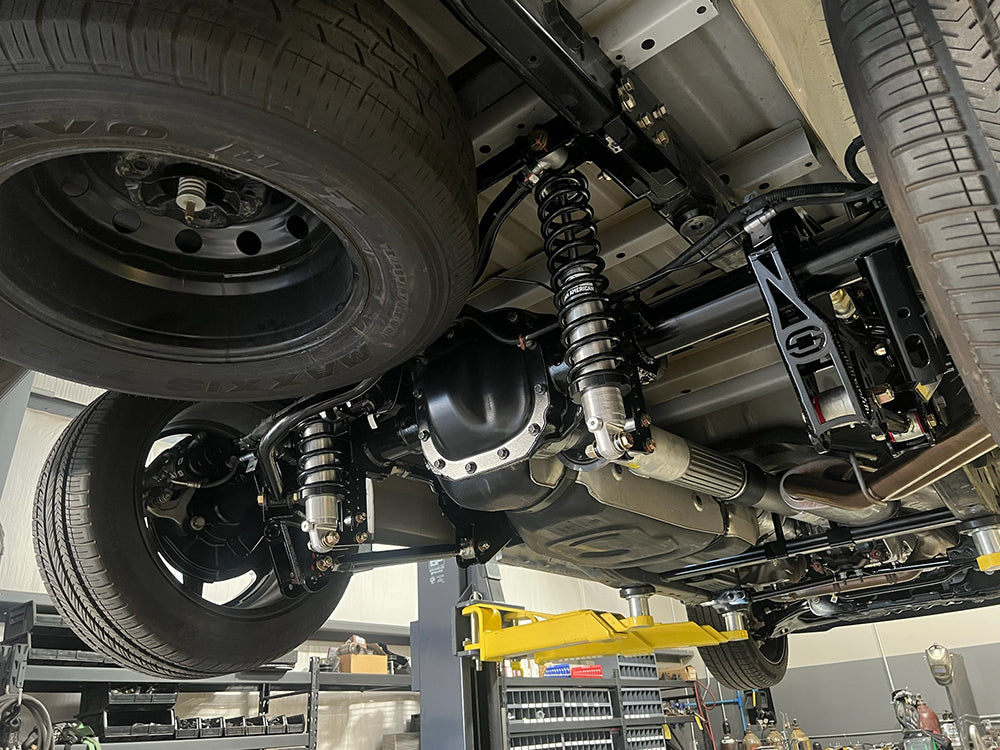

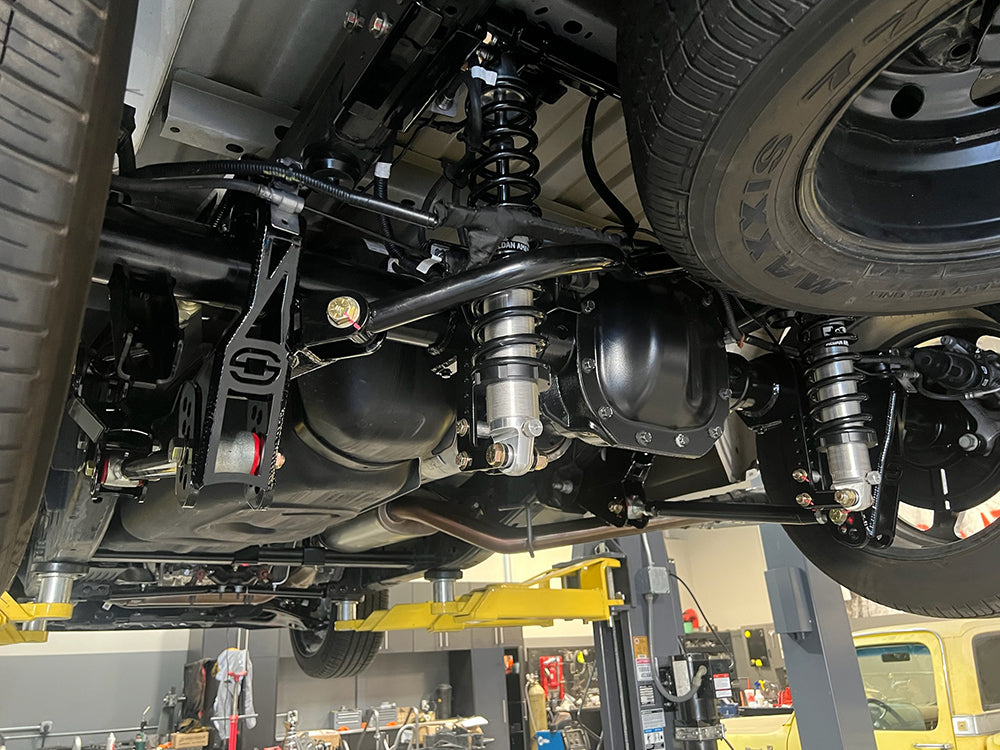

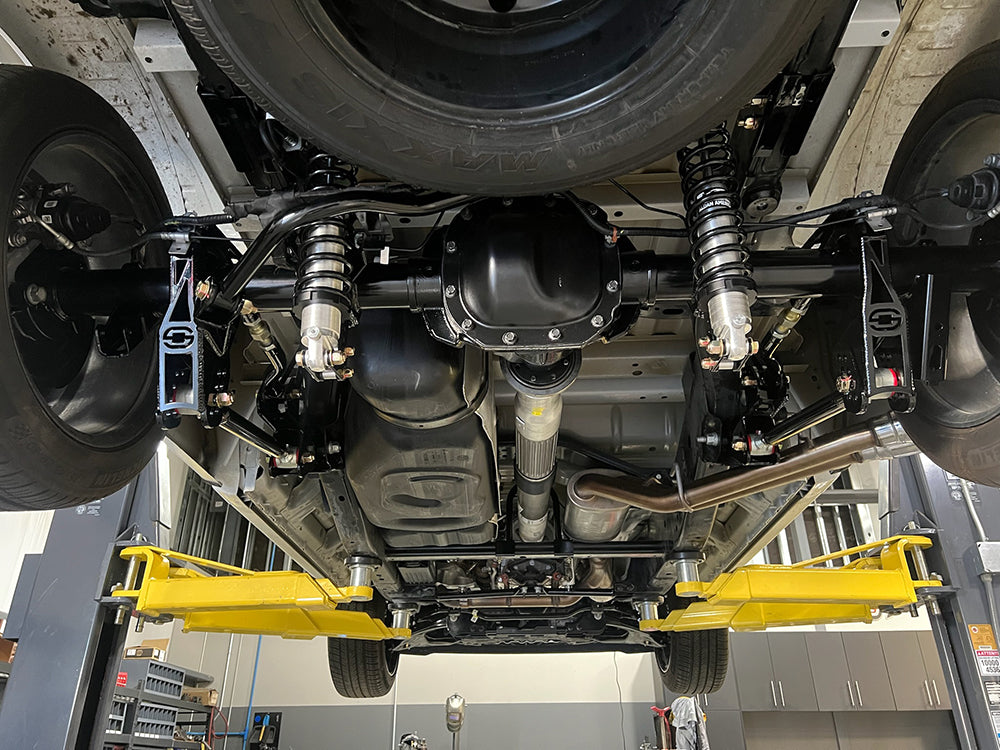

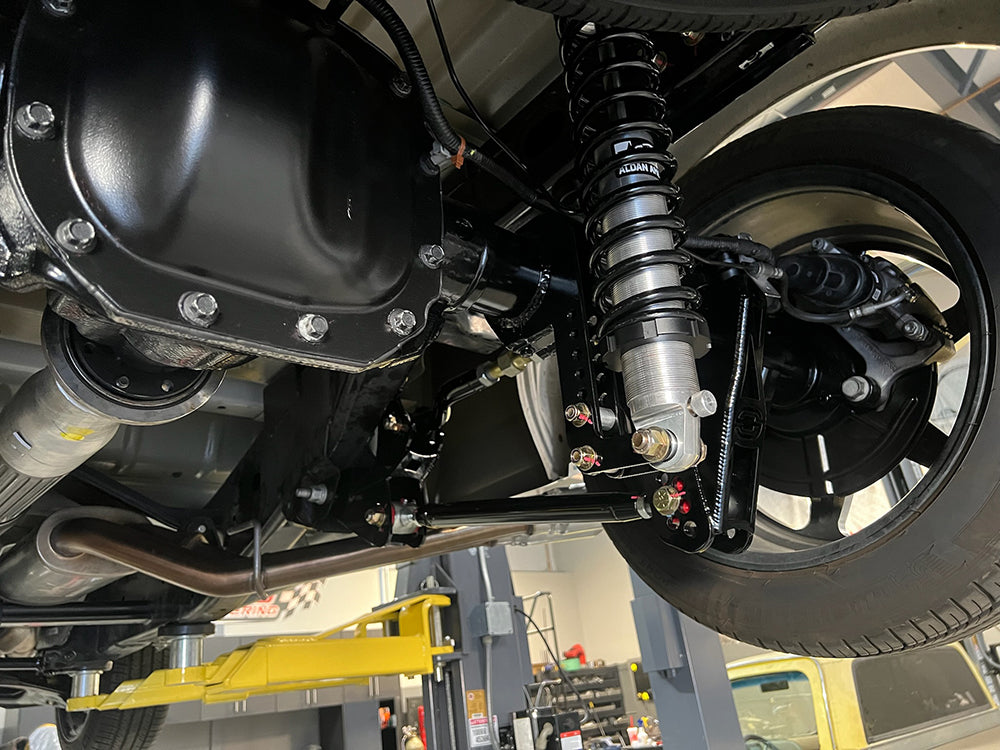

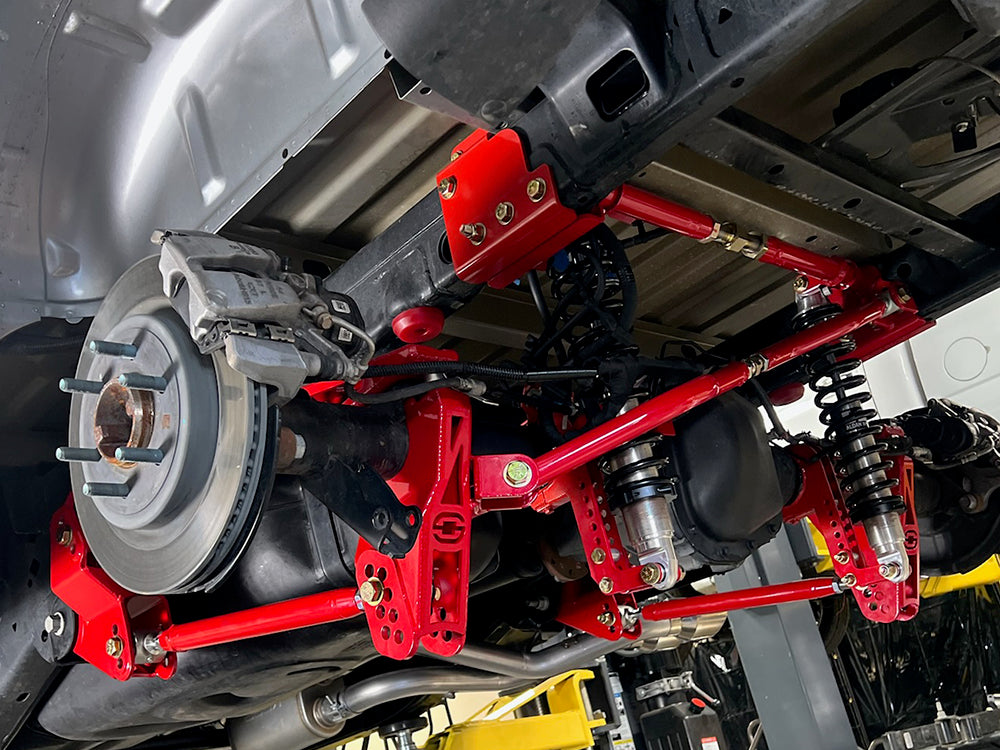

Suspension Engineering is proud to announce our full bolt on 4 link system designed for street and race truck applications. Suspension Engineering chassis and suspension components are designed and tested to create a high strength, durable product, with great fitment. Our manufacturing process employ automated tubing benders, CNC machining, and laser cut components. We stand behind our products, and you will not find a better quality product at such an affordable price.

Features Include:

  • Full Bolt-on 4 Link Kit
  • Hardware Included
  • Includes Cast Polyurethane Bushings or (Upgraded Heim Joints "In Production")
  • Adjustable Link Locations
  • Bolts to Factory Leaf Spring Location
  • Perfect for Street and Race applications
  • Drilling required for Chassis Brace
  • Bolt on Panhard Bar Mount
  • Made in the USA

Other Optional Features Include:

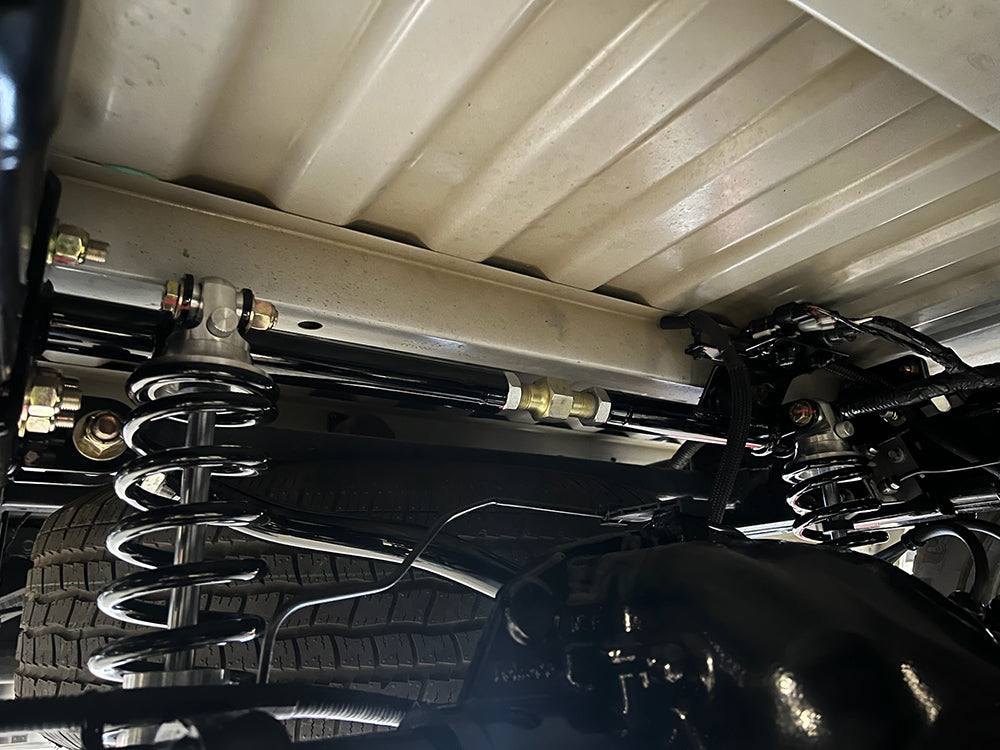

  • Bolt on Upper Coilover Mount Crossbar
  • Weldable Axle Brackets with Adjustable Mounting
  • Axle Brackets Work on 3 1/8" (3.125") Axle Housing
  • Aldan Dual Adjustable Coilovers (Available in 17" or 19.5" Extended Length)
  • Panhard Bar

Note: Four link kit is fully bolt-on, but if you run our recommended optional rear coil over conversion, you will need to weld the brackets to the axle.

Note: Axle Brackets will require welding to rear axle housing. Axle brackets would only work on factory axle diameter of 3 1/8" (3.125").

Note: Brake fittings will need to be cleaned or tap for reinstalling during installation.

Vehicle Applications:

  • 2015-2024 F150 (2WD & 4WD)
